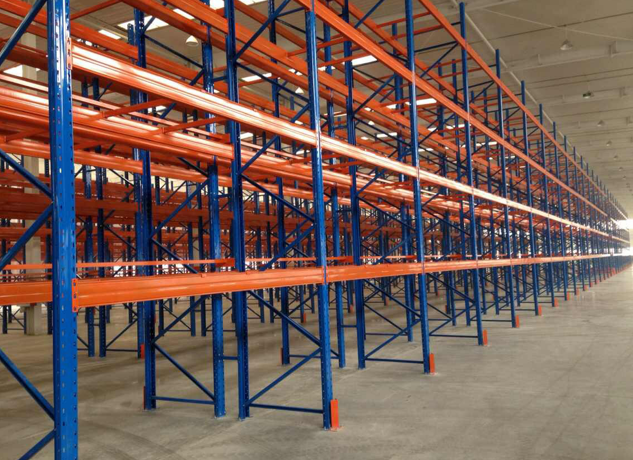

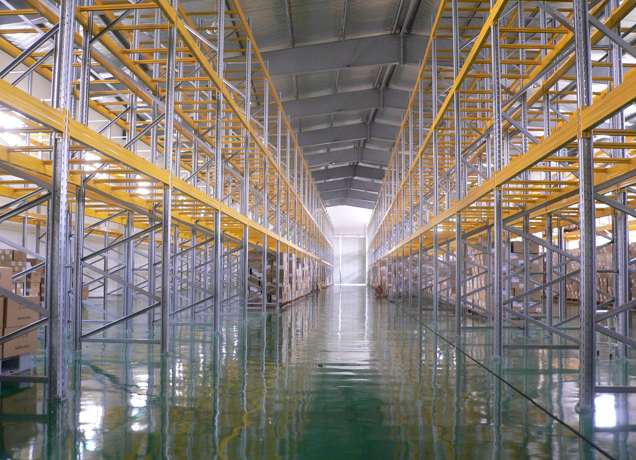

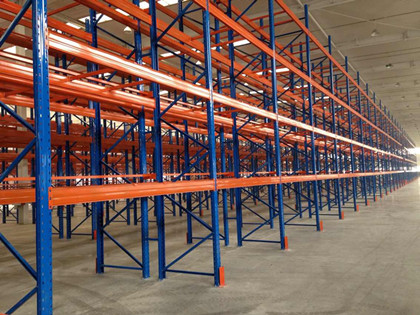

Selective pallet racking

With simple structure, pallet racking has the widest application. This kind of racking can be conveniently installed and operated, and allows easy searching of goods location. Generally, a pallet is used as a unit of storage, and the type, specs and size of pallet, as well as storage weight and stacks height, is determined according to goods features. Specs of such racking are determined according to the outline and weight of the goods in pallet and the dimension of the warehouse. Generally each level can contain 1-3 pallets.

The racking is composed of upright frame and beam, which are connected in the form of hitching and fixed with safety pins, so that the structure is simple but reliable. In the event of any change in the varieties of goods stored, warehouse keepers may adjust the beam height freely with a pitch of 50mm or 75mm.

The racking can be equipped with other safety accessories such as mesh decking, steel board, support bar, pallet stopper, protector and frame protector.

Layouts of such racking generally include standard channel type, very narrow aisle (VNA) type, and double deep type. It can be used together with common forklift, forward forklift, three-direction forklift, and so on. It is the most frequently used warehousing solution.
